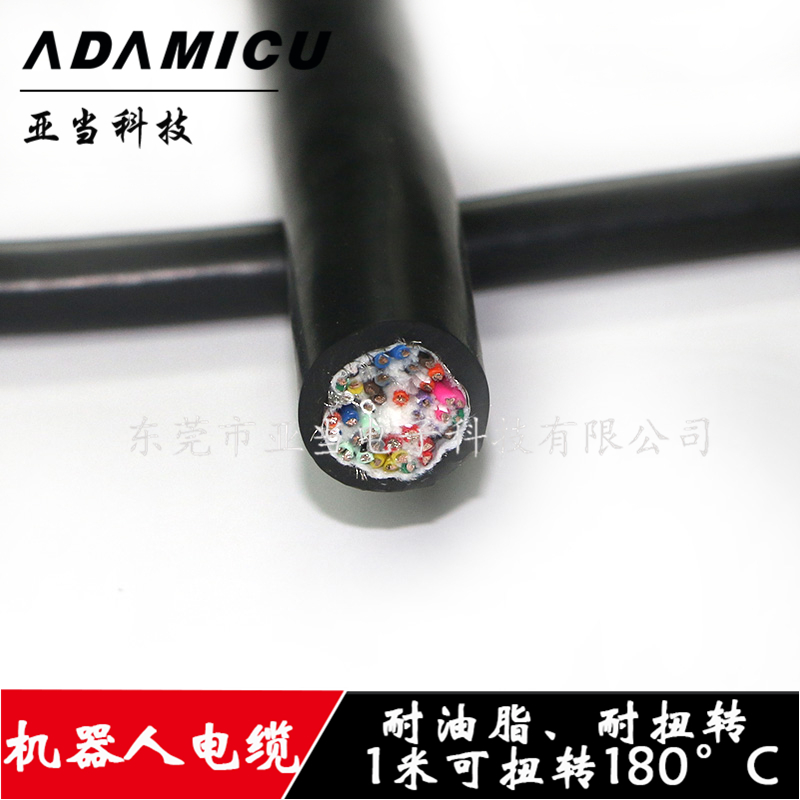

mains power cable for industrial robot arm40X0.5mm：
Robot-specific cable (can be customizedaccording to the specific model specifications, bending resistance, torsionresistance, diameter, working environment and other requirements)
Take a length of 1 meter, do ± 180 ° torsion test 3 million times the core.(The factory has a test report)
A wide range of robot cables, core number from 2 to 60 core range, single corearea is covered by 0.08mm-10mm all models. (Commonly used specifications largeinventory)
Properties of Mains power cable forindustrial robot arm 40X0.5mm:
High torsion, high strength, high wearresistance, tear resistance, resistance to all types of grease
Corrosion resistance, resistance to twisting, bending resistance,anti-ultraviolet
Structure of Mains power cable forindustrial robot arm 40X0.5mm:
Conductor: Highly resistant to stretchingthe fine bare copper stranded
Filling: High-grade polyester-cotton, special reinforcement, the new superpolymer synthetic fiber
Insulation :Imported TPE mixture, has a good anti-stretch, to protect thecopper wire is not the role of breaking
Twisted: The number of core <10 core wire twisted together at short pitch
The number of core ≥ 10core with double twist, increase the tensile strength
Wire Identify: Section <0.5mm2: color in accordance with DIN 47100 standard
Section ≥ 0.5mm2:black and white digital code or color distinction
Jacket: Import Highly Toughened Polyurethane PUR
Hacket Color: Gray, black, orange, green
If Shield: Optical coverage ≥ 98%, winding shielding, shielding density ≥ 95%
Test Voltage: 2000V (according to DIN VDE 0281-2)
Operating Voltage: 300/300V，300/500V，450/750V
Temperature: Fixed installation : -40℃ to +70℃
Mobileinstallation : -20℃ to +70℃
Bending Radius: ( Mobile installation ) : When the travel <8 meters, thebending radius of 7.5 × d
When the travel ≥8 meters, the bending radius of 10 × d
(Fixedinstallation ): the bending radius of 4 × d
Application:
PUR Outer Sheath Anti-twist robot cable forpower control and signal transmission, suitable for installation in the torqueand bending stress at the same time there are various occasions, such aswelding robots and manipulator connection and assembly, but also for connectingthe rotary or lifting table.
